Friday, July 13, 2007

Ruby on Rails continuously integrated with Bamboo

Since I tripped over a few things setting up Bamboo for Rails, I thought it would be good to share my approach. After my last post, someone from Atlassian thought that would be a good idea as well, so, what the heck.

Creating a Simple Rails Project

In order to demonstrate configuring a project on Bamboo, it's easiest for me just to create a simple rails project, with a model and scaffold. This'll come with tests, albeit useless ones. But if you wanted a tutorial on how to use Rails, you've come to the wrong place.

geoffrey@paraietta:~/projects$ rails bamboo-rails
create app/controllers
create app/helpers
create app/models
create log/production.log
create log/development.log
create log/test.log
geoffrey@paraietta:~/projects$ cd bamboo-rails/
geoffrey@paraietta:~/projects/bamboo-rails$ mysql -u root
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 8
Server version: 5.0.38-Ubuntu_0ubuntu1-log Ubuntu 7.04 distribution

Type 'help;' or '\h' for help. Type '\c' to clear the buffer.

mysql> create database `bamboo-rails_development`;
Query OK, 1 row affected (0.01 sec)

mysql> create database `bamboo-rails_test`;
Query OK, 1 row affected (0.00 sec)

mysql> quit
geoffrey@paraietta:~/projects/bamboo-rails$ script/generate model foo bar:string baz:string
exists app/models/
exists test/unit/
exists test/fixtures/
create app/models/foo.rb
create test/unit/foo_test.rb
create test/fixtures/foos.yml
create db/migrate
create db/migrate/001_create_foos.rb
geoffrey@paraietta:~/projects/bamboo-rails$ rake db:migrate
(in /mnt/home/geoffrey/projects/bamboo-rails)
== CreateFoos: migrating ======================================================
-- create_table(:foos)
-> 0.0040s
== CreateFoos: migrated (0.0041s) =============================================

geoffrey@paraietta:~/projects/bamboo-rails$ script/generate scaffold foo
exists app/controllers/
exists app/helpers/
create app/views/foos
create app/views/layouts/foos.rhtml
create public/stylesheets/scaffold.css

Add the Project to Source Control

Once the project's created, it has to be somewhere that Bamboo can reach it. The usual practice is a source control system. In this case, I'm using Subversion.

geoffrey@paraietta:~/projects$ svn import bamboo-rails http://messis/svn/spikes/bamboo-rails -m "A simple Rails/Bamboo integration project."
Adding bamboo-rails/test
Adding bamboo-rails/test/unit
Adding bamboo-rails/test/unit/foo_test.rb
Adding bamboo-rails/public/stylesheets
Adding bamboo-rails/public/stylesheets/scaffold.css
Adding bamboo-rails/public/favicon.ico

Committed revision 190.

Configure Bamboo for Ruby

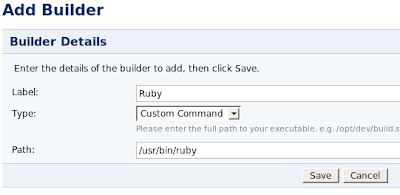

In order to build anything in Bamboo/Ruby, you're going to want to configure a builder in Bamboo. There may be a way to use one of the existing builders, but this is what worked for me. Just add a builder for Ruby and point it to your ruby executable.

Create a Plan for your Ruby Project

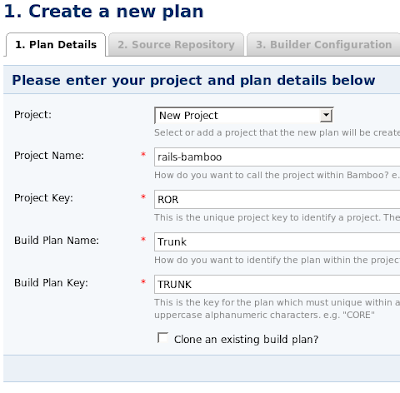

You're going to want to create a Project and Plan for your Ruby project. Bamboo projects are umbrellas for related Plans:

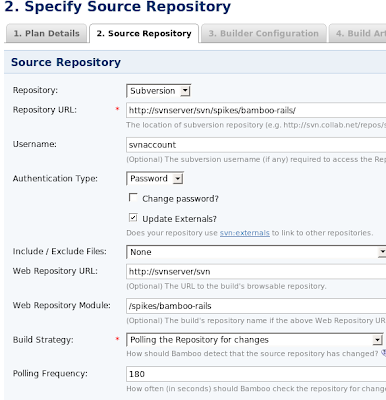

Plans tell Bamboo what you're trying to build, where to find the source code:

They also tell Bamboo how to build what it finds:

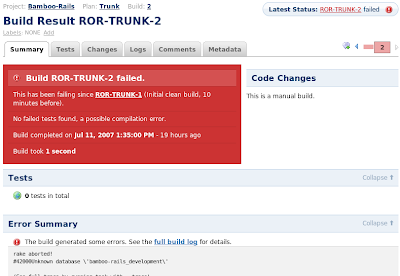

They also tell Bamboo what to do with the results, and whom to notify, but those steps aren't unique to Rails in any way, so I'm going to leave them out. At this point, you have a project and plan defined in Bamboo, so you can check to see if it worked:

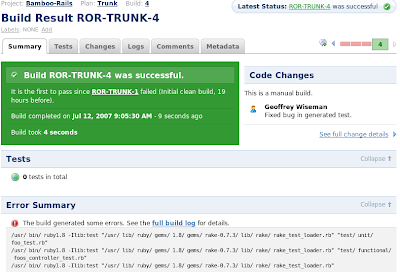

It didn't. I didn't create the database on the build server. Once I've done that:

Et Voila

You've got a basic Ruby on Rails project building in Bamboo. This is the bare minimum setup. There's a lot of things you can add from here. In my next post, I'll cover getting Bamboo to recognize your test results and calculate coverage.


Anatol Pomozov said...

BTW. Is it possible to add Buildr ( support to Bamboo??

As I understand it should be configured similar to RubyOnRails project (ruby, rake..). Am I correct??

Geoffrey Wiseman said...

I haven't tried it myself, but I don't see why it would be a problem. For the most part, adding new "builders" is simply a matter of telling Bamboo what to execute, where to find it, and how to interpret the results.

The level to which it can be integrated depends on the kind of output it produces. Bamboo is pretty good at executing just about anything and archiving 'results', but it only 'understands' a few of those outputs directly: JUnit XML and Clover coverage, and probably something like execution status codes. Pretty much anything else requires you to interpret the results directly.

Anonymous said...

To use the builder arguments "db:migrate test" you must have a _development database on your database server. Otherwise "test" fails when preparing from development.

Does this seem right or is there a better way to set things up?


Geoffrey Wiseman said...

I won't attempt to imply I know the best approach here, but I know you can do "db:migrate RAILS_ENV=test", so that might work to avoid a _development database on your build server, which I admit sounds a little unnecessary.
